Keogram
Display

Keogram Display is a 10.1-inch AI powered smart touchscreen for golf carts and low-speed vehicles. Factory integrated as an OEM solution, whitelabel ready, and already powering 1,000+ LSVs with 20,000+ miles logged.

GET CUSTOM DISPLAYCOMPARE DISPLAY
2321ODI/MI
96.8TRIP/MI
85%
SPECIFICATIONS

Product Specifications

Display Size
10.1 inches
Display Resolution
1024 x 600
CPU
Dual-core ARM Cortex™-A7 1.2GHz, 2Gb DDR3, 1Gb eMMc
Operating System
Keogram Linux Operating System™
Connectivity
Wireless Apple CarPlay, Wireless Android Auto
Bluetooth
Dual BLE — Channel 1: CarPlay/Android Auto, Channel 2: Speakers + Hands-free
Audio
FM Radio (87.5–108.0 MHz), Bluetooth Audio, Hands-free Calling
Camera
Rear-view camera included — auto-activates on reverse
Dashboard
Real-time speed, gear position (N/D/R), battery %, trip & odometer
Supported Apps
Spotify, Google Maps, Waze, WhatsApp, and 20+ more via CarPlay/Android Auto
CAN Support
CAN bus enabled for vehicle data integration
Installation
Plug-and-play, no wiring overhaul required
White-label
Fully customisable: your logo, boot screen, colours; ships as your product
Theme
Dark & Light mode
Units Deployed
1000+ LSV’s powered, 20,000+ miles logged
Mic
Built in
Power Input
9V–90V DC
INTELLIGENT DISPLAY

Display built to make your vehicle intelligent

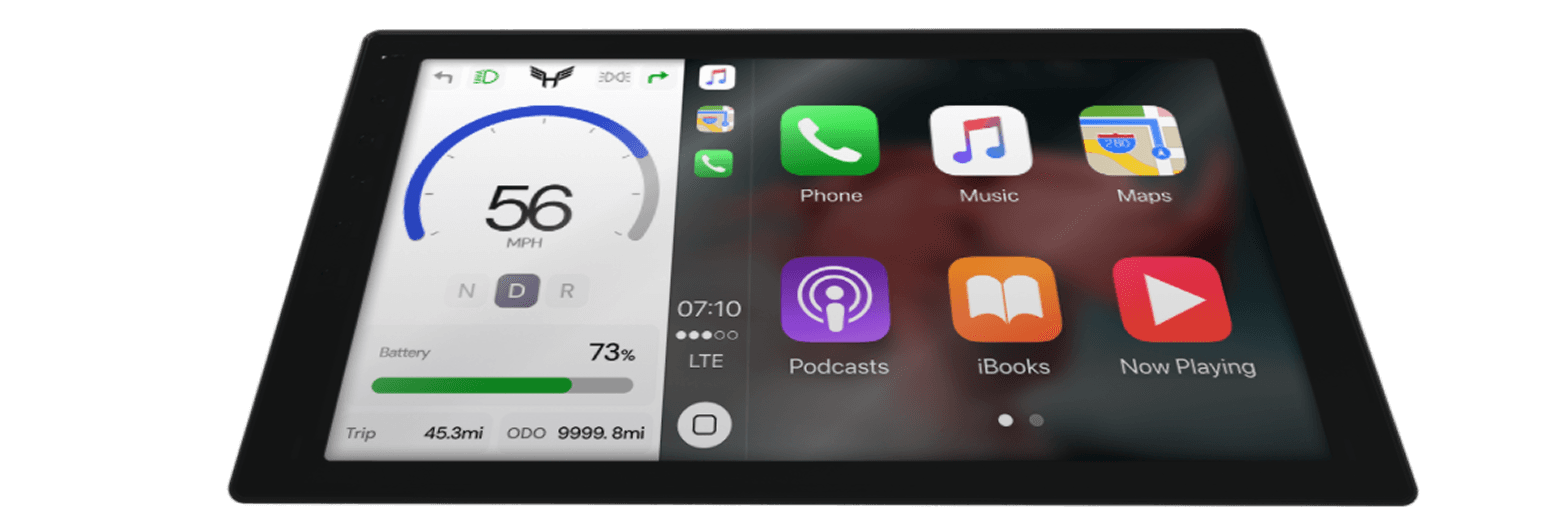

Keogram Display running a real-time dashboard alongside Apple CarPlayGET CUSTOM DISPLAY

  • Real Time Dashboard

    The real-time dashboard shows speed, gear position (N/D/R), battery percentage, trip distance, and odometer. The system supports CAN bus for vehicle data integration with compatible controllers and batteries.

  • Automatic Device Reconnection

    Remembers your last paired phone and reconnects automatically when the cart starts again.

WHAT YOU GET?

What’s in the box?

  • FM antenna (2M length)
  • Mounting bracket and hardware
  • Overall extension cable (10cm length)
  • Rear-view camera with cable
  • Keogram Display 10.1” touchscreen unit
  • OEM Branded quick start guide / manual
  • Wiring harness (plug-and-play)
  • Full set of volume knob
Keogram Display shipping box outline
Customizable Display

Fully customizable displays for your golf carts and low-speed vehicles.

Running on the proprietary Keogram Linux Operating System and fully white-label ready. OEM partners can fully customise the displays, so the display ships as their own branded product.

  • Option 1Customize functionality and features specific to your vehicle.
  • Option 2Ship displays with your own boot screen, logo, and colour scheme.
20K+ MILES WITH DISPLAY

Built Displays That Are Powering Honor LSV Golf Carts

Built custom displays for Honor LSVs that are currently powering 1,000+ LSVs with over 20,000 miles logged across the Honor LSV fleet.

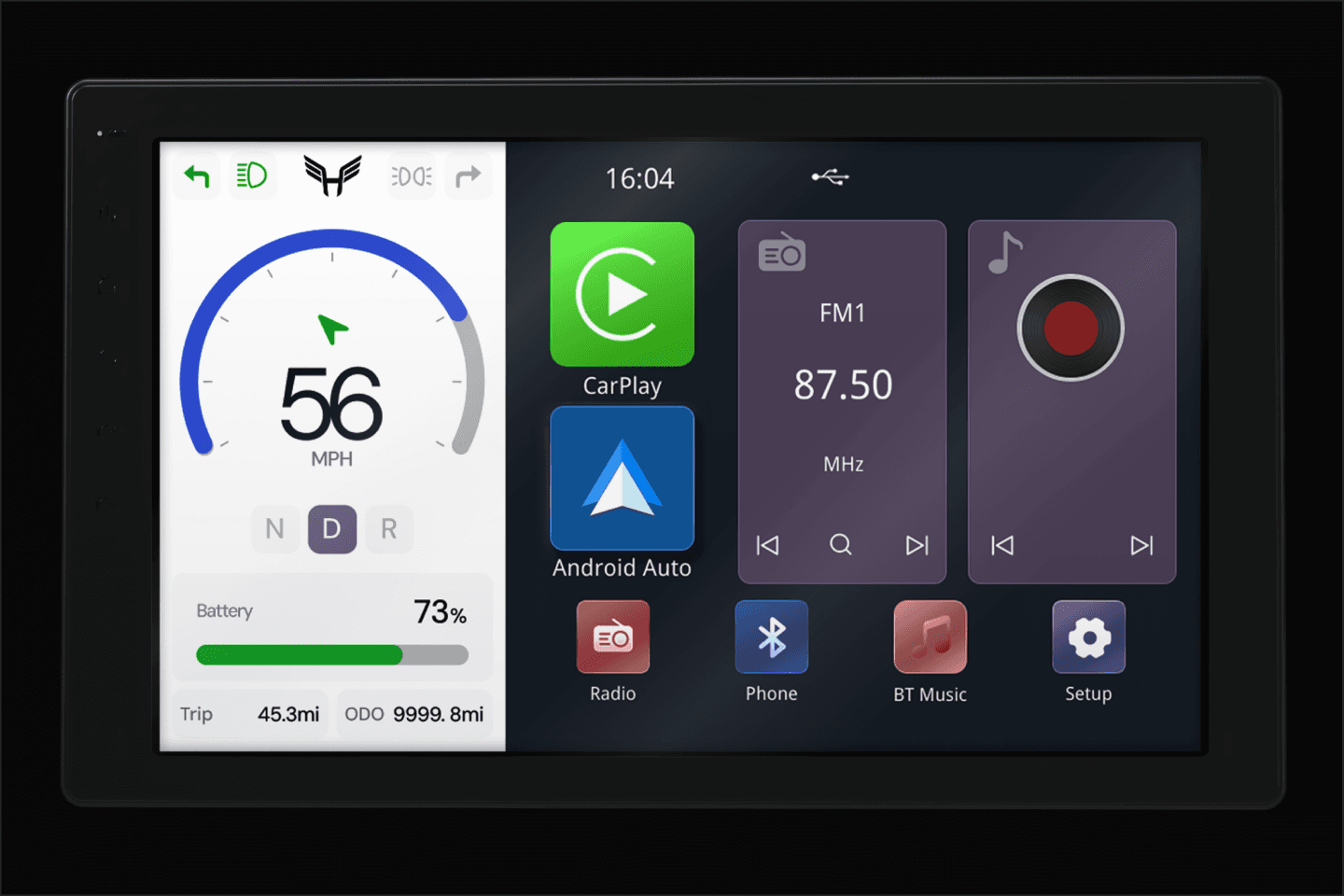

Keogram Display showing the real-time dashboard alongside CarPlay, radio, and app shortcuts

Dual BLE

The display features wireless Apple CarPlay and Android Auto through a dedicated BLE connection — no cables needed. A second independent BLE channel is reserved for Bluetooth speakers, FM radio, and hands-free calling, so audio and CarPlay never compete for the same connection.

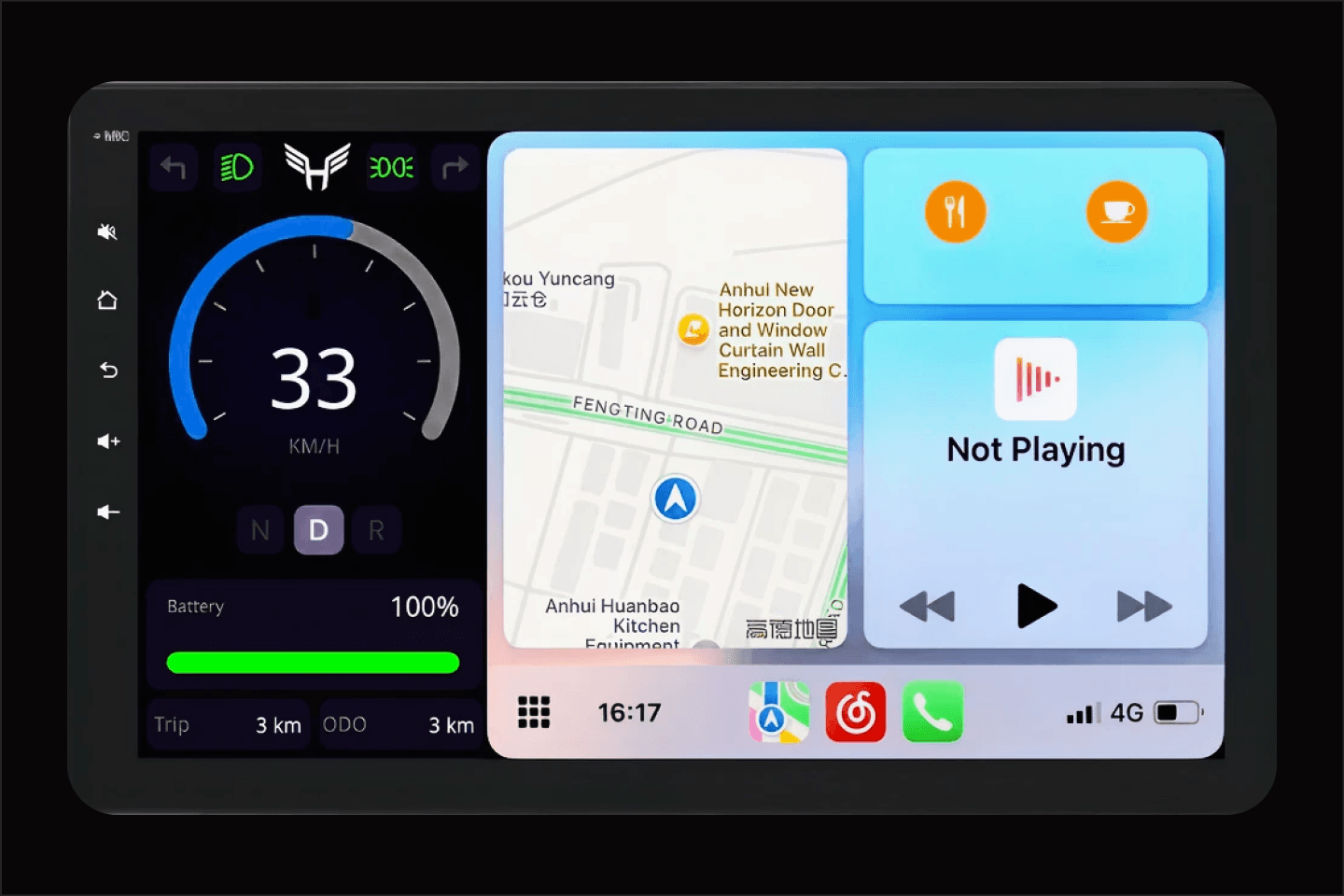

Keogram Display running the dashboard next to CarPlay maps and now-playing controls

FM Radio & Bluetooth Audio

Listen to radio stations or stream music from your phone.

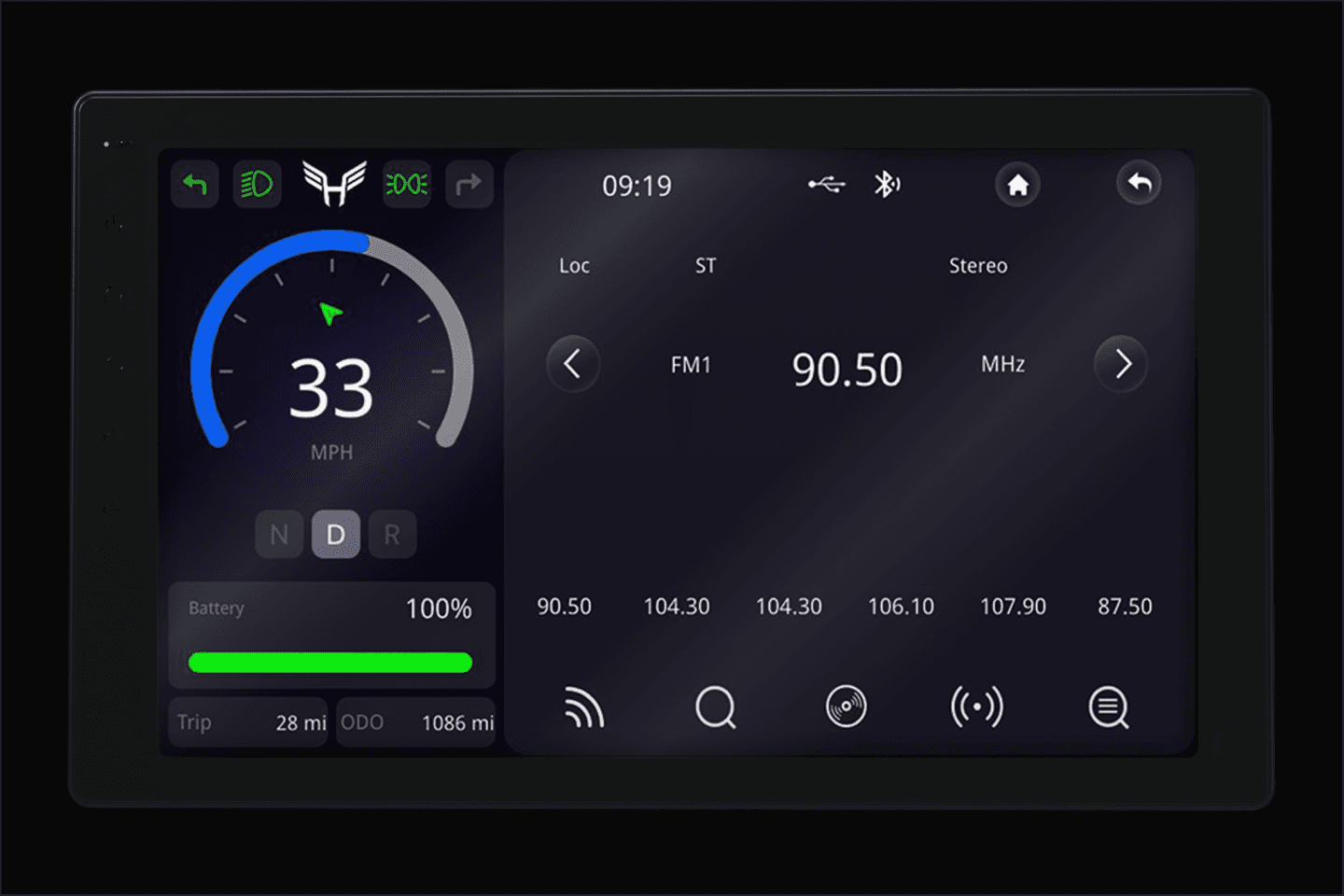

Keogram Display showing the dashboard alongside the FM radio tuner

Hands-Free Calling

Make and receive calls safely via Bluetooth.

Dark And Light Mode

Customize the theme according to your needs.

Rear View Camera Supportive controls

A rear-view camera is included and auto-activates on reverse.

FAQ’s

Any Questions?

Don’t see your question here? Reach out to us and we’ll get back to you asap. Weighing up displays? Read our guide to a smarter standard for golf cart displays.

CONTACT US
CONTACT US

Ready for a smarter dashboard?

Talk to our team about factory-integrating Keogram Display into your next fleet — we’ll walk you through white-label options, timelines, and unit pricing.
